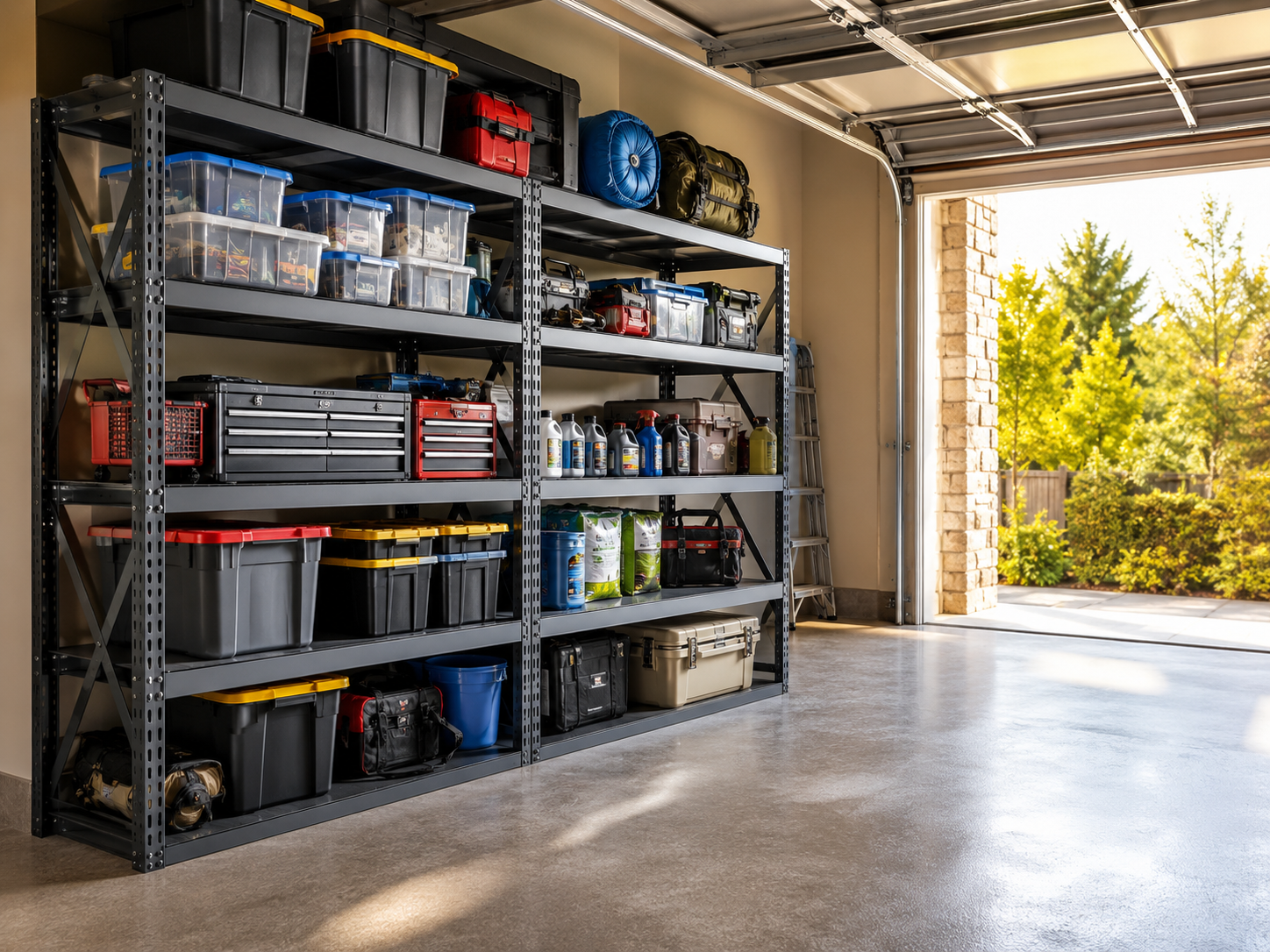

What Makes a Heavy-Duty Shelf Truly Strong?

A shelf may look sturdy, but appearance alone does not determine how much weight it can safely support. True heavy-duty shelving depends on the entire structure—from the steel frame and shelf decking to the beam connections, bracing and floor contact points.

Whether you are organizing a home garage, workshop, warehouse or stockroom, understanding these structural details can help you choose shelving that remains stable under demanding storage conditions.

This guide explains what makes a heavy-duty shelf truly strong and which features deserve the most attention before you buy.

1. High-Quality Steel Construction

Steel quality is one of the foundations of heavy-duty shelving strength. A properly designed steel frame can support substantial loads while resisting bending, twisting and everyday impact.

When comparing metal shelving, consider:

• Steel thickness
• Post and beam dimensions
• The shape of the structural profiles
• Reinforcement at high-stress areas
• Manufacturing and welding quality
• Protective surface treatment

However, thicker steel does not automatically guarantee a stronger shelf. The shape of the posts, beams and reinforcement channels also affects how efficiently the structure distributes weight.

Cold-formed or cold-rolled steel components are commonly used in storage racks because they can provide a strong, consistent structure without creating unnecessary bulk.

2. Reinforced Upright Posts

Upright posts transfer the weight of every shelf level to the floor. If the posts are too thin, poorly formed or inadequately connected, the rack may sway or become unstable even when the shelf panels appear strong.

Heavy-duty upright posts often include:

• Folded or multi-bend steel profiles
• Regular adjustment slots
• Reinforced corners
• Wide load-bearing surfaces
• Strong post-to-beam connection points
• Stable feet or welded base plates

The shape of an upright is especially important. Multiple bends and reinforced edges can increase rigidity and help the post resist movement in more than one direction.

For tall shelving units, proper anchoring may also be necessary—particularly in commercial environments, seismic regions or locations where the rack could be struck by equipment.

3. Strong Horizontal Beams

Horizontal beams carry the weight placed on each shelf and transfer it to the upright posts. Their strength directly affects how much weight a shelf level can support without excessive deflection.

Important beam features include:

• A deep structural profile
• Reinforced bends or channels
• Secure connectors at both ends
• Consistent contact with the shelf deck
• Safety locks that prevent accidental disengagement

Longer shelves generally require stronger beams because the unsupported distance between the upright posts is greater. Two shelves made from the same material may therefore have very different load ratings if one is significantly wider.

A well-designed beam should support the intended load with limited flexing when the weight is evenly distributed.

4. Reinforced Shelf Decking

The shelf surface must do more than hold boxes. It must distribute their weight across the supporting beams without bending, buckling or developing permanent deformation.

Heavy-duty shelving may use:

• Ribbed steel panels
• Reinforced metal decking
• Wire decking
• Thick engineered wood panels
• Multiple steel panels joined across each level

Steel shelf panels often include deep rib channels or folded edges. These structural features increase rigidity without relying only on material thickness.

Additional supports beneath the shelf can also reduce the distance that the deck must span. This helps distribute heavy loads and limits bending, particularly when storing toolboxes, machinery parts or dense containers.

5. Secure Beam-to-Post Connections

A heavy-duty shelf is only as reliable as its connection points. Even strong steel components can become unstable if the beams do not lock securely into the upright posts.

Boltless shelving systems commonly use:

• Rivet connections
• Tab-and-slot connections
• Keyhole-style fittings
• Interlocking hooks
• Snap-lock or clip-in mechanisms
• Safety pins or locking clips

These connections allow the shelves to be assembled and adjusted without extensive hardware. When properly designed, they also transfer weight directly from the beams into the posts.

Before loading a shelf, confirm that every connector is fully seated and that all safety locks are installed. Partially engaged connections can reduce stability and create uneven loading.

6. Effective Cross-Bracing

Bracing helps stop a shelf from leaning, twisting or moving sideways. This lateral stability is particularly important for tall, wide or heavily loaded shelving units.

Common reinforcement methods include:

• Rear cross-braces
• Side X-bracing
• Horizontal support bars
• Triangular corner braces
• Rigid frame connections
• Wall or floor anchors

Cross-bracing does not usually carry the main vertical load. Instead, it keeps the frame square and helps prevent side-to-side movement.

If a shelving unit feels stable from front to back but sways sideways, inadequate bracing or incorrectly installed connections may be the cause.

7. A Wide, Stable Footprint

Shelf depth and base design play an important role in overall stability. A tall, shallow shelving unit is generally more vulnerable to tipping than a properly proportioned unit with a wider base.

A strong base may include:

• Broad footplates
• Welded base plates
• Leveling feet
• Floor-protection pads
• Anchor holes
• Reinforced lower post sections

The shelving must also stand on a hard, level surface. An uneven garage or warehouse floor can cause rocking and prevent the load from being distributed evenly across all four posts.

Never use loose pieces of wood, cardboard or other unstable materials to compensate for an uneven floor. Use manufacturer-approved leveling components or relocate the unit to a suitable surface.

8. Even Weight Distribution

A shelf’s stated capacity normally assumes that the load is uniformly distributed. This means the weight is spread across the shelf rather than concentrated in one small area.

For safer storage:

• Place heavier items on the lower levels
• Spread dense items across the shelf
• Avoid concentrating the entire load in the center
• Keep objects within the edges of the shelf
• Do not exceed the rated capacity of an individual level
• Consider the total capacity of the entire unit

For example, a shelf may support several evenly spaced storage bins but perform differently if the same total weight is concentrated in one compact machine.

If you need to store point loads, check whether the shelf requires additional support bars or specialized decking.

9. Realistic and Clearly Defined Load Ratings

Load-capacity claims can be misleading when they are not clearly explained. A product advertised as supporting thousands of pounds may be referring to the capacity of the entire shelving unit—not a single shelf.

Before buying, check:

• Capacity per shelf level
• Total unit capacity
• Whether the rating assumes even distribution
• Whether the shelf must be anchored
• Whether the stated capacity applies to a specific configuration
• Whether the rating includes the shelf decking
• Whether any components have lower individual limits

A four-tier rack with a total rating of 4,000 pounds does not necessarily mean that one shelf can hold all 4,000 pounds. The capacity may be divided across the four levels.

Clear specifications are more useful than an impressive number without testing conditions or loading instructions.

10. Quality Manufacturing and Consistency

Heavy-duty performance also depends on how accurately the shelving components are produced.

Poorly aligned slots, uneven welds or inconsistent panels can prevent the rack from fitting together correctly. This may cause movement, uneven loading or difficulty engaging safety locks.

Useful indicators of manufacturing quality include:

• Clean, consistent welds
• Straight posts and beams
• Uniform adjustment holes
• Precisely fitting connectors
• Smooth panel edges
• Reliable surface coating
• Complete assembly hardware

The rack should stand square after assembly. If the frame remains visibly twisted or the components require excessive force to connect, stop and check the instructions before loading it.

11. Corrosion-Resistant Surface Protection

Rust does not usually cause immediate failure, but long-term corrosion can weaken steel components and connection points. This matters in humid garages, basements, workshops and commercial storage areas.

Powder-coated shelving provides a durable surface that can help protect the steel against scratches, moisture and everyday wear. Galvanized steel may be more suitable for certain damp or demanding environments.

The correct finish depends on where the shelf will be used. Indoor powder-coated shelving should not automatically be assumed suitable for permanent outdoor exposure.

Inspect the rack regularly for:

• Chipped coatings
• Surface rust
• Corroded fasteners
• Moisture collecting beneath stored items
• Chemical damage
• Deformed components

Damaged structural parts should be replaced rather than bent back into shape without guidance from the manufacturer.

12. Correct Assembly

Even a well-engineered shelf can become unsafe if it is assembled incorrectly.

Before use:

1. Assemble the rack on a level surface.
2. Confirm that the frame is square.
3. Fully engage every beam connector.
4. Install all safety pins, clips and braces.
5. Check that the shelf panels sit correctly.
6. Tighten any required fasteners.
7. Anchor the unit when recommended.
8. Recheck the structure after initial loading.

Never modify structural components by drilling new holes, cutting beams or removing braces unless the manufacturer specifically permits it.

Heavy-Duty Shelving Checklist

Before selecting a shelving unit, ask the following questions:

• What is the capacity of each individual shelf?
• What is the capacity of the complete rack?
• Is the rating based on evenly distributed weight?
• What material is used for the posts, beams and decking?
• Does the shelf include structural bracing?
• Are the beam connections secured with locking clips or pins?
• Can shelf heights be adjusted?
• Does the base provide stable floor contact?
• Is anchoring recommended or required?
• Is the surface finish suitable for the intended environment?
• Are replacement parts available?
• Does the shelving size fit the available space safely?

These questions make it easier to compare real structural performance instead of relying on product appearance alone.

Choosing the Right Heavy-Duty Shelf for Your Space

The strongest shelf is not always the best shelf for every application. The right choice should match the items being stored, the available space and the working environment.

Garage storage

Garage shelving should provide enough depth for storage totes, automotive supplies, power tools and seasonal equipment without interfering with vehicles or walkways.

Workshop storage

Workshop shelves need strong, accessible levels for tools, materials and equipment. Adjustable shelf heights are helpful when storage needs change frequently.

Warehouse storage

Warehouse shelving may require higher capacities, floor anchoring, impact protection and compliance with workplace safety requirements. Professional installation or engineering review may be appropriate for larger systems.

Basement storage

In basements, moisture resistance and floor conditions deserve extra attention. Keep stored items above the floor and avoid placing unprotected steel directly in areas with standing water.

Final Thoughts

A truly strong heavy-duty shelf is not defined by one oversized post or a large capacity claim. Strength comes from a complete structural system: quality steel, reinforced uprights, rigid beams, durable decking, secure connections, effective bracing and a stable base.

Proper assembly and sensible loading are just as important as the shelf’s materials. By examining how every component works together, you can choose shelving that delivers reliable storage, improved organization and long-term value.
